GO2 Foxy Quick Start

This guide provides instructions for interfacing with the Unitree GO2 Edu robot using Ubuntu 20.04 and ROS2 Foxy.

Note

Ensure that you have already completed the setup and pairing with your GO2 Edu.
Verify all functionality using the mobile app before continuing.
Initial setup instructions can be found in the GO2 Docs.
This guide builds upon the information available in those docs.

Warning

The documentation below is valid only for the GO2 Edu version (tested until 08-July-2025).

Warning

Unitree is constantly updating their firmware, and at times changing naming conventions may cause breakage in some newer firmwares. If this occurs, either submit an issue or create a pull request with the correct feature updates.

Static Network Connection

For the first-time connection, you must configure the robot’s network via a LAN cable.

On your PC (not on the robot), open:

Settings → Network → Add (+) New Connection
In the IPv4 settings:
- Change the method to Manual
- Set the IP Address: 192.168.123.51
- Set the Netmask: 24
- Save and restart your network connection
Confirm that the host’s local IP is configured correctly:
```
ifconfig
```
Ping the robot to verify the connection:
```
ping 192.168.123.18
```
Access the robot via SSH:
```
ssh -X unitree@192.168.123.18
```
Default password:
```
123
```

GO2 IP Addresses

IP Address	Device	Username	Password
192.168.123.161	GO2 MCU	x	x
192.168.123.18	GO2 Auxiliary PC	unitree	123
192.168.123.18:9000	GO2 Webserver MBS	x	mybotshop

Warning

Other active networks may interfere with your connection. For best results, disconnect from all other networks and connect only to the GO2.

Network Connection

Connection via LAN:

ssh -X unitree@192.168.123.18

When starting up, keep in mind:

The Go2 wrapper operates on ROS_DOMAIN_ID=10. Launch files automatically use Domain ID 10.
The namespace can be changed to match your robot’s ID for multi-robot systems.

GO2 Drivers Startup

After completing installation, the ROS2 packages will run in the background (if pre-installed by the mybotshop team).

Important

To check which packages must run, see the go2_bringup startup script.
Service names are mentioned there and can be referenced directly.

Example:

sudo service go2-webserver status
ros2 launch go2_webserver webserver.launch.py

Ensure duplicate services are not running simultaneously. Close unnecessary services before launching new ones.

GO2 Gaits

Available gait modes:

Normal Trot (recommended for Nav2, SLAM applications):

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/modes go2_interface/srv/Go2Modes "{request_data: 'gait_type_classic'}"

Flat Terrain Mode (for flat environments):

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/modes go2_interface/srv/Go2Modes "{request_data: 'gait_type_flat_terrain'}"

Economic Trot (long runs, battery conservation):

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/modes go2_interface/srv/Go2Modes "{request_data: 'gait_type_economic'}"

Fast Trot:

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/modes go2_interface/srv/Go2Modes "{request_data: 'gait_type_trot_run'}"

A.I Trot:

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/modes go2_interface/srv/Go2Modes "{request_data: 'gait_type_agile'}"

GO2 Sports Mode

Important

The Sports Mode feature is deprecated in GO2 v2.2.1+ or with the latest firmware update.

Switch to sports mode:

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/modes go2_interface/srv/Go2Modes "{request_data: 'sports_mode'}"

GO2 Visualization

Launch RViz visualization:

ros2 launch go2_viz view_robot.launch.py

GO2 Tele-operation

Run teleoperation with keyboard:

ROS_DOMAIN_ID=10 ros2 run teleop_twist_keyboard teleop_twist_keyboard --ros-args --remap cmd_vel:=/go2_unit_21576/cmd_vel

Go2 ROS2 Modules

This section describes the ROS2 modules available for the Unitree GO2 platform, their usage, and example commands.

GO2 Webserver

The GO2 Webserver module comes pre-installed for heavy integration projects.

It can be accessed directly via:

LAN: http://192.168.123.18:9000/
Wi-Fi: The IP assigned to the robot

The configuration file is located at:

/opt/mybotshop/src/mybotshop/go2_webserver/config/robot_webserver.yaml

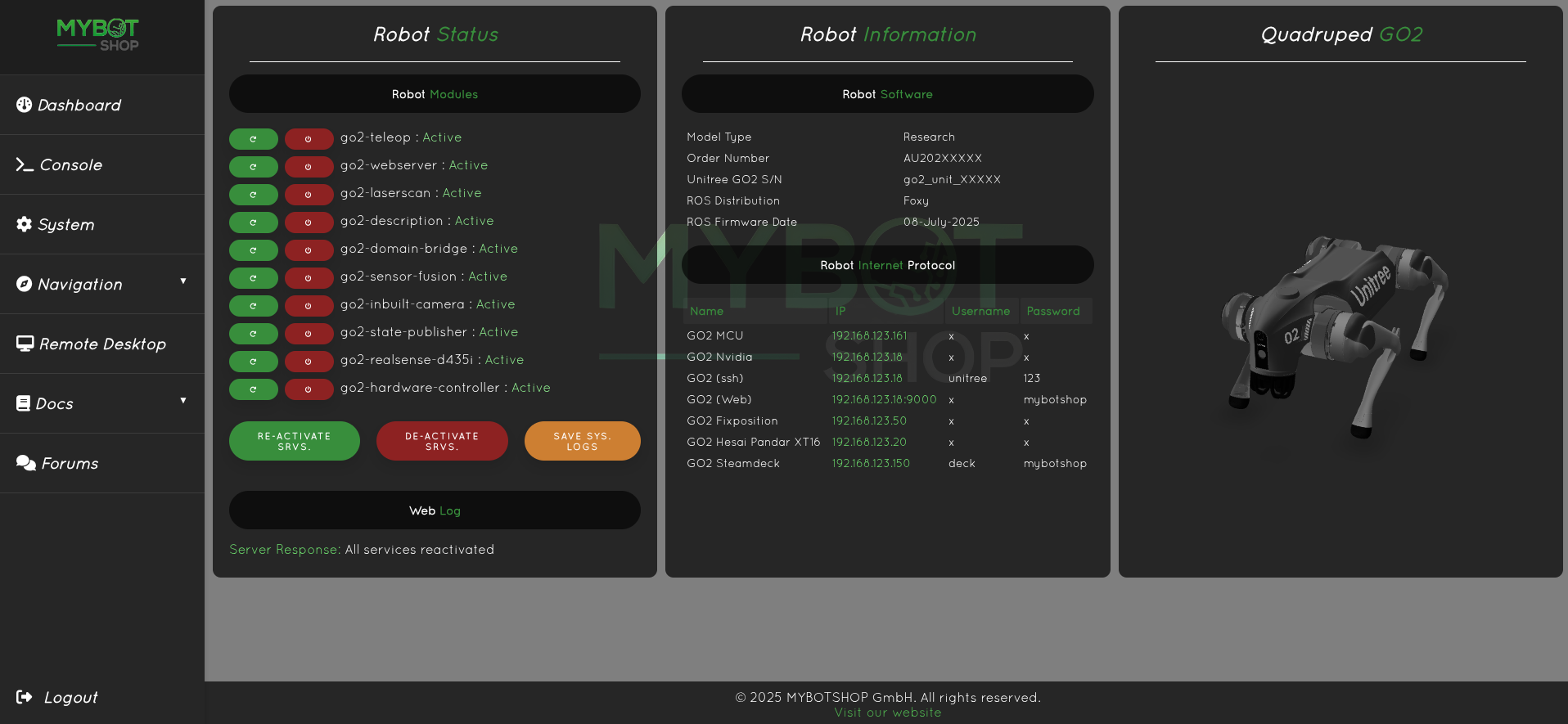

Dashboard

The Dashboard provides key system controls:

Enable or disable the GO2 ROS2 services.
Record system logs for debugging or analysis.

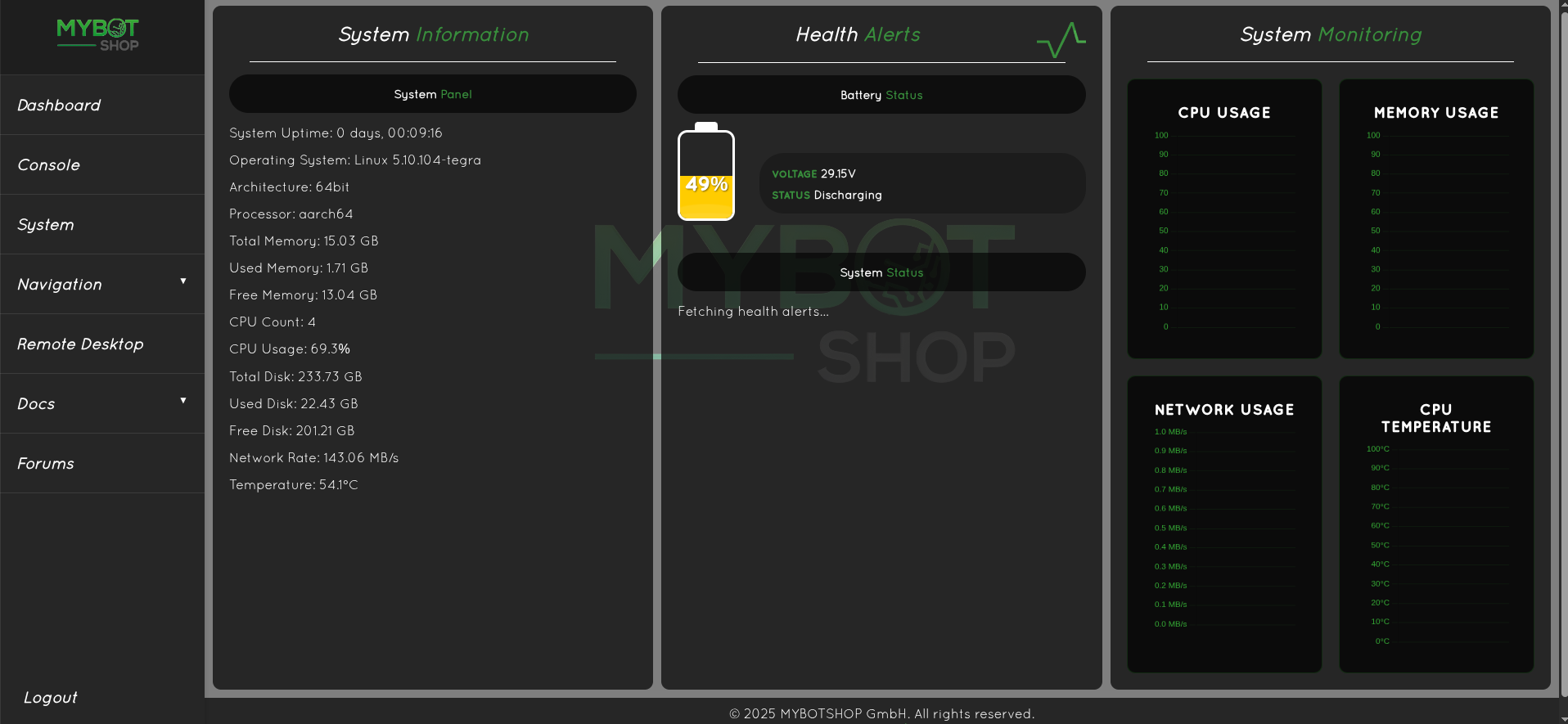

System

The System page displays the external PC status of the Unitree GO2. - Battery status is only active when ROS2 drivers are enabled from the Dashboard.

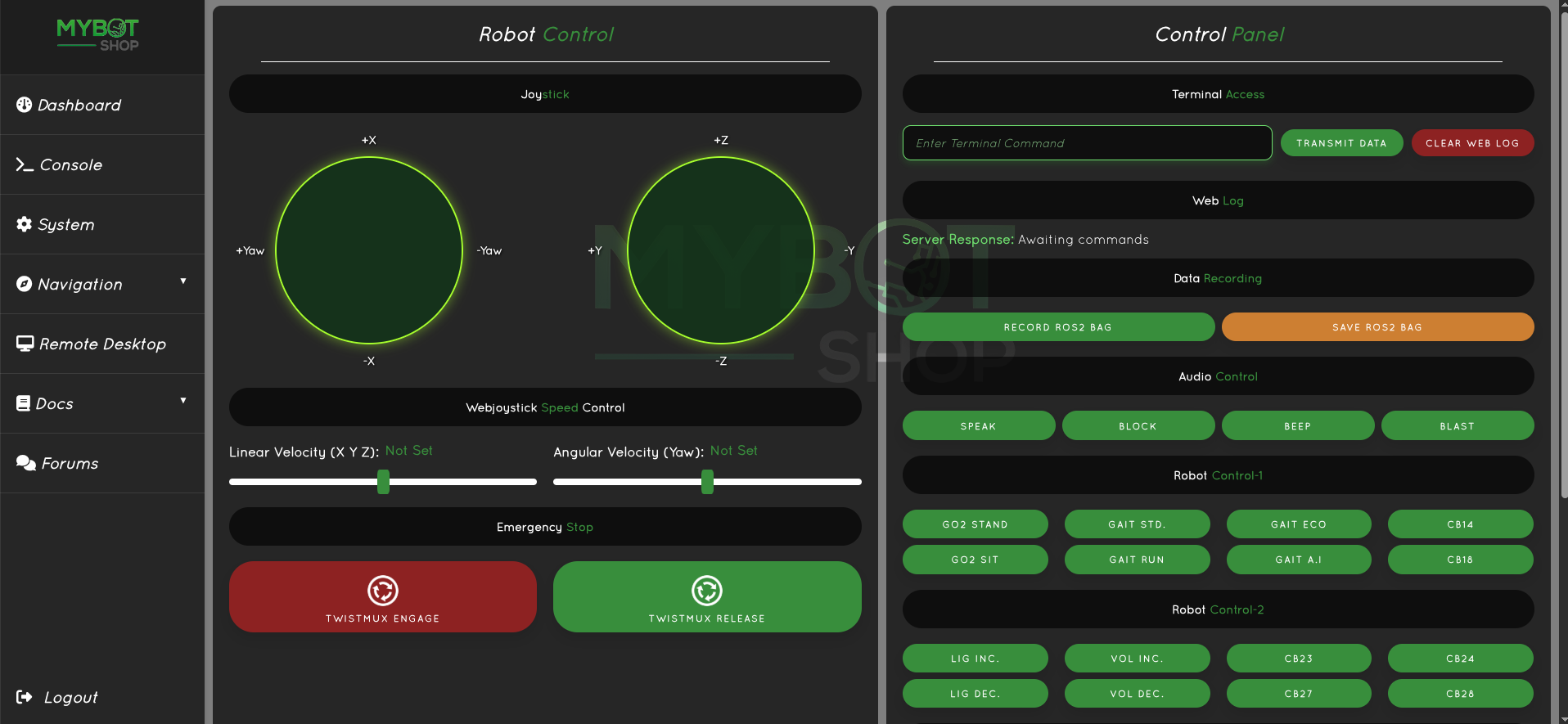

Console

The Console allows direct control over the Unitree GO2:

Move the robot and switch between different gaits.
Adaptable to new ROS2 services.
Record ROS2 bags for later playback.
Access the GO2 external speaker if available.

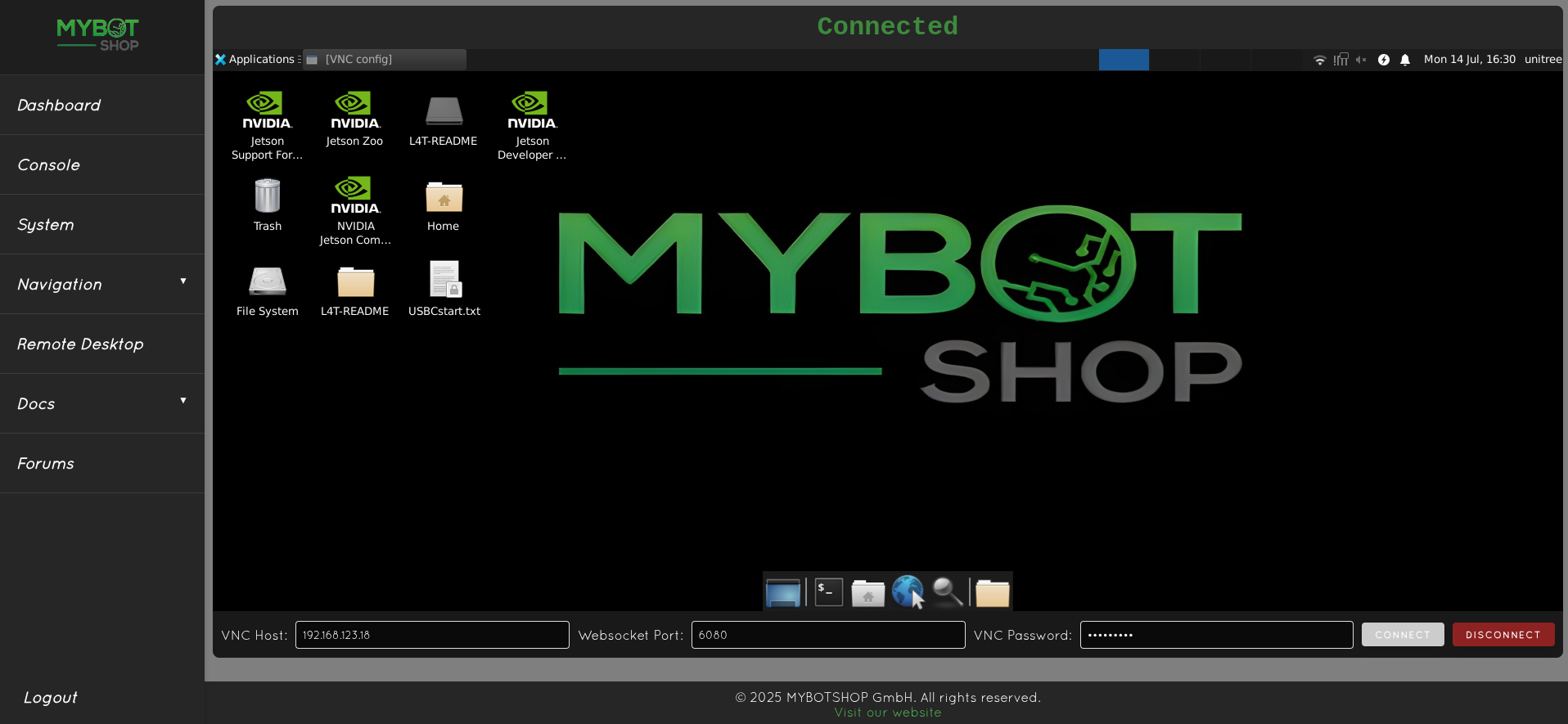

Remote Desktop

Access the on-board screen of the GO2’s computer directly via the webserver.

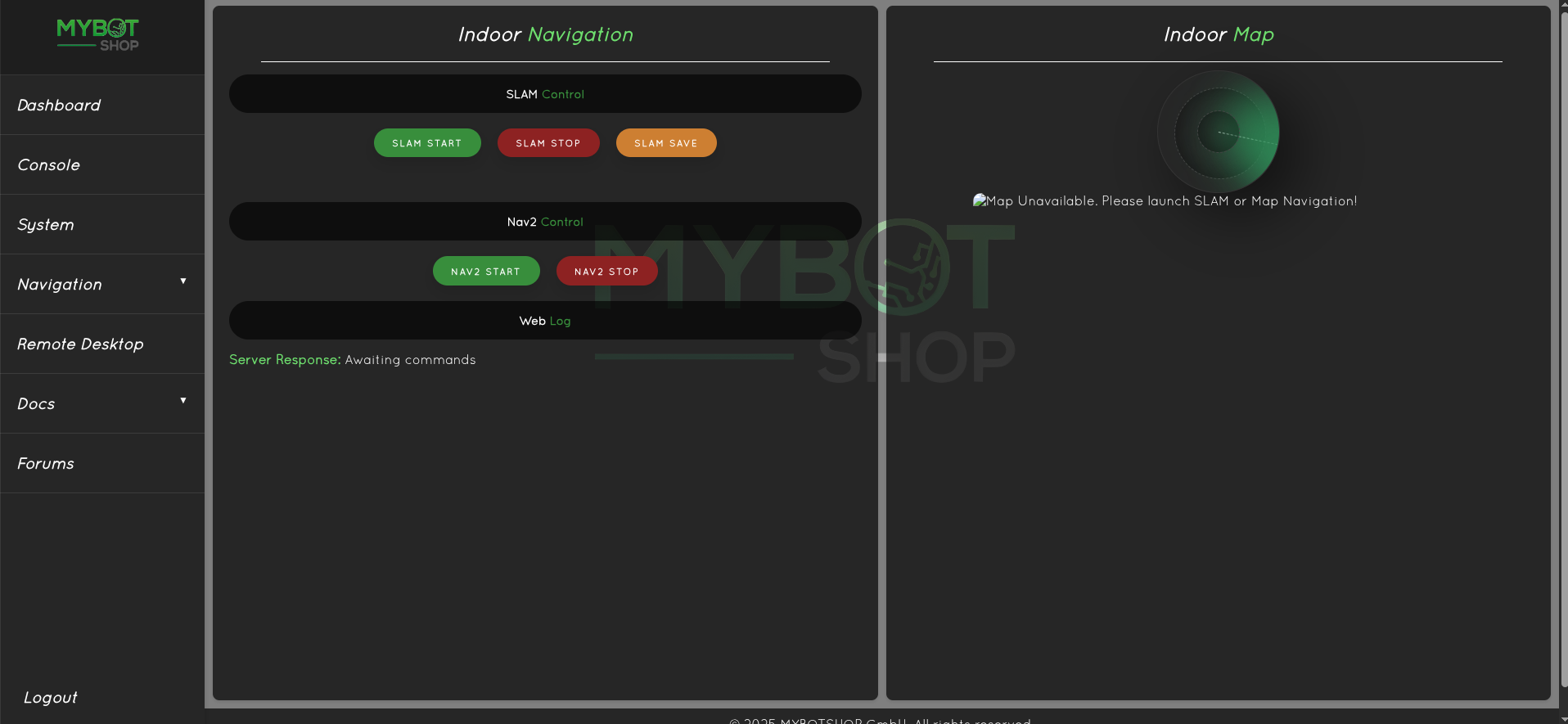

Navi Indoor

This feature is coming soon.

Navi Outdoor

This feature is coming soon.

LLM Interface

This feature is coming soon.

GO2 Mode Activation

The following modes are available via ROS2 services:

balance_stand
recovery_stand
stand_down
stand_up
stretch
damp
sit
rise_sit
front_jump
front_pounce
front_flip
stop_move

Note

These functions can be extended in the go2_platform.cpp file to support new firmware features from the Unitree team.

Available functionalities via ROS2 services:

Light level: 0–10
Volume level: 0–10

Example — Activating stand-up mode:

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_001/modes go2_interface/srv/Go2Modes "{request_data: 'stand_up'}"

Wait a few seconds, then switch to balance stand:

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_001/modes go2_interface/srv/Go2Modes "{request_data: 'balance_stand'}"

Example — Standing down:

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_001/modes go2_interface/srv/Go2Modes "{request_data: 'stand_up'}"

Note

First use stand_up to remove balance mode, then stand_down. This is required for the latest firmware and GO2-W.

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_001/modes go2_interface/srv/Go2Modes "{request_data: 'stand_down'}"

Example — Changing light level (0–10):

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/light go2_interface/srv/Go2Light "{light_level: 10}"

Example — Changing volume level (0–10):

ROS_DOMAIN_ID=10 ros2 service call /go2_unit_21576/volume go2_interface/srv/Go2Volume "{volume_level: 4}"

Note

Sometimes modes (e.g., stand) may fail to activate. In such cases, use the recovery stand mode.

Realsense Depth Cameras

Warning

If running both Realsense cameras, launch them in separate terminals with a 10s delay to avoid conflicts.

Realsense D405:

ros2 launch go2_depth_camera realsense_d405.launch.py

Realsense D435i:

ros2 launch go2_depth_camera realsense_d435i.launch.py

Note

By default, both Realsense D435i and D405 are disabled.
The launch file is preconfigured to stream depth data continuously from D435i without lag. Modify parameters in: go2_depth_camera/launch/realsense_d4XX.launch.py

Lidar Modules

Livox Mid360:

ros2 launch go2_lidars livox_mid360.launch.py

Hesai Pandar XT-16:

ros2 launch go2_lidars hesai.launch.py

After launching, access the sensor’s web UI and configure:

Spin rate: 300
Return mode: strongest return
Azimuth: 30 → 330

Fixposition Setup

Install dependencies:

sudo apt update
sudo apt install libyaml-cpp-dev libboost-all-dev zlib1g-dev libeigen3-dev linux-libc-dev nlohmann-json3-dev

Build Fixposition:

distrobox enter ros2_humble
rm /opt/mybotshop/src/third_party/gps/07Aug2025_fixposition_humble/COLCON_IGNORE
cp -r /opt/mybotshop/src/third_party/gps/07Aug2025_fixposition_humble /home/unitree/fixposition_humble
cd /home/unitree/fixposition_humble
source /opt/ros/humble/setup.bash
./setup_ros_ws.sh -r 2
./create_ros_ws.sh /home/unitree/fixposition_humble_ws
cd /home/unitree/fixposition_humble_ws
colcon build --symlink-install --cmake-args -DBUILD_TESTING=OFF && source install/setup.bash

Run Fixposition:

distrobox enter ros2_humble
source /opt/ros/humble/setup.bash
source /home/unitree/fixposition_humble_ws/install/setup.bash
ros2 launch fixposition_driver_ros2 fixposition_humble.launch.py

Run converter (new terminal):

ros2 launch odom_to_tf_ros2 odom_to_tf.launch.py

ROS2 Open Manipulator Control

Start the custom ROS driver:

ros2 launch go2_manipulation openmanipulator.launch.py

Note

This driver must always be running when using MoveIt or joint trajectories.

Launch MoveIt & State Publisher:

ros2 launch go2_manipulation moveit2.launch.py

ROS2 Open Manipulator Commands

Note

Update the namespace accordingly if required.

Test driver:

ROS_DOMAIN_ID=10 ros2 action send_goal /go2_unit_001/open_manipulator/joint_trajectory_controller/follow_joint_trajectory control_msgs/action/FollowJointTrajectory -f "{
  trajectory: {
    joint_names: [joint1, joint2, joint3, joint4],
    points: [
      { positions: [0.1, 0.1, 0.1, 0.1], time_from_start: { sec: 2 } },
      { positions: [-0.1, -0.1, -0.1, -0.1], time_from_start: { sec: 4 } },
      { positions: [0, 0, 0, 0], time_from_start: { sec: 6 } }
    ]
  }
}"

Home position (before turning off, GO2 prior to 06 Mar 2025):

ROS_DOMAIN_ID=10 ros2 action send_goal /go2_unit_001/open_manipulator/joint_trajectory_controller/follow_joint_trajectory control_msgs/action/FollowJointTrajectory -f "{
  trajectory: {
    joint_names: [joint1, joint2, joint3, joint4],
    points: [
      { positions: [0.0, -1.4, 1.2, 1.2], time_from_start: { sec: 2 } },
    ]
  }
}"

Stand position:

ROS_DOMAIN_ID=10 ros2 action send_goal /go2_unit_21576/open_manipulator/joint_trajectory_controller/follow_joint_trajectory control_msgs/action/FollowJointTrajectory -f "{
  trajectory: {
    joint_names: [joint1, joint2, joint3, joint4],
    points: [
      { positions: [0.0, -0.2, -0.1, -0.24], time_from_start: { sec: 1 } },
    ]
  }
}"

Home position (GO2 after 06 Mar 2025):

ROS_DOMAIN_ID=10 ros2 action send_goal /go2_unit_21576/open_manipulator/joint_trajectory_controller/follow_joint_trajectory control_msgs/action/FollowJointTrajectory -f "{
  trajectory: {
    joint_names: [joint1, joint2, joint3, joint4],
    points: [
      { positions: [0.0, -1.7, 1.4, 1.2], time_from_start: { sec: 2 } },
    ]
  }
}"

Close gripper (before turning off):

ROS_DOMAIN_ID=10 ros2 action send_goal /go2_unit_21576/open_manipulator/gripper_controller/follow_joint_trajectory control_msgs/action/FollowJointTrajectory -f "{
  trajectory: {
    joint_names: [gripper],
    points: [
      { positions: [1.0], time_from_start: { sec: 2 } },
    ]
  }
}"

Open gripper:

ROS_DOMAIN_ID=10 ros2 action send_goal /go2_unit_21576/open_manipulator/gripper_controller/follow_joint_trajectory control_msgs/action/FollowJointTrajectory -f "{
  trajectory: {
    joint_names: [gripper],
    points: [
      { positions: [-1.0], time_from_start: { sec: 2 } },
    ]
  }
}"

GO2 Navigation & Simulation

This section covers SLAM, navigation, startup services, and simulation tools for the Unitree GO2 robot.

GO2 SLAM (Simultaneous Localization and Mapping)

Warning

The SLAM feature is not yet ported to the new system.

Ensure go2_bringup is running.

Launch SLAM:

ros2 launch go2_navigation slam.launch.py

Begin mapping using teleoperation at 0.2 m/s (keyboard control recommended).

Once satisfied with your map, export it:

ROS_DOMAIN_ID=10 ros2 run nav2_map_server map_saver_cli -f /opt/mybotshop/src/mybotshop/go2_navigation/maps/custom_map

Rebuild so that custom maps can be located (required if the map name is not `map_`):

cd /opt/mybotshop/ && colcon build --symlink-install && source /opt/mybotshop/install/setup.bash

GO2 Odometric Navigation

Note

The Nav2 Goal Tool and Nav2 Goal Plugin do not work due to namespace issues. Instead, use 2D Goal Pose in RViz or custom scripts.

Launch odometric navigation:

ros2 launch go2_navigation odom_navi.launch.py

GO2 Map Navigation

Note

The Nav2 Goal Tool and Nav2 Goal Plugin do not work due to namespace issues. Use 2D Goal Pose or scripts instead.

Ensure a map is generated and available in the ROS package. (After saving, place the map in the correct location and rebuild with colcon build.)

Launch map-based navigation:

ros2 launch go2_navigation map_navi.launch.py

GO2 Startup Services

By default, the GO2 does not include a startup job unless explicitly configured. It only launches:

go2_bringup/system.launch.py

To verify if a startup service exists:

sudo service go2-<ros2 module name> status

Error message: Unit <ros2 module name>.service could not be found. → No startup service is installed.
Markers:

Color

Meaning

Red

Startup job has failed

Green

Service is running correctly

Grey

Service has not yet started

Color	Meaning
Red	Startup job has failed
Green	Service is running correctly
Grey	Service has not yet started

Restart a service if red/grey:

sudo service go2-<ros2 module name> restart

To modify or extend startup jobs, edit:

go2_bringup/startup_installer.py

Then update:

ros2 run go2_bringup startup_installer.py

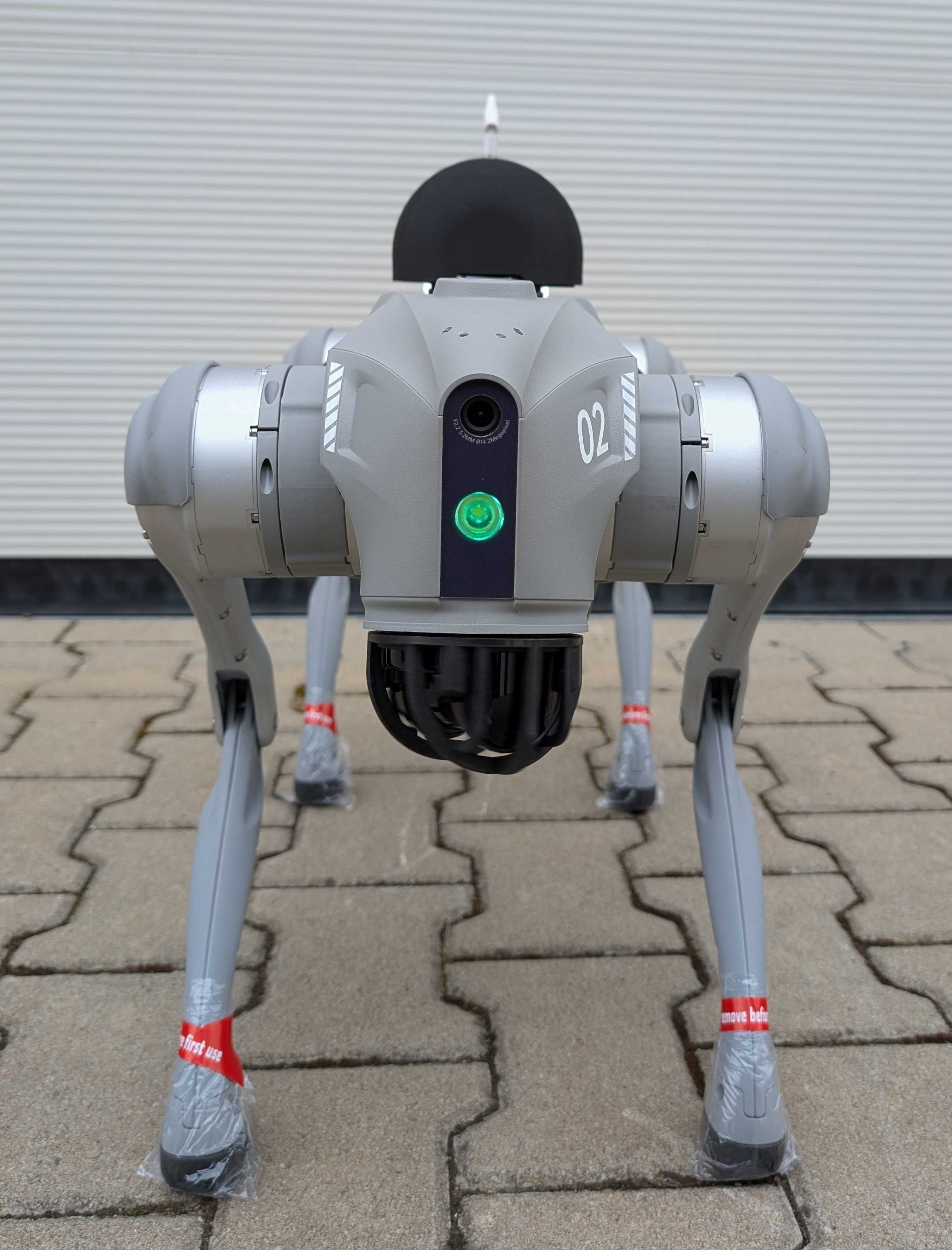

GO2 Steamdeck

Follow the initialization guide:

Steamdeck Initialization Docs

Connect to the custom router of the GO2 (startup may take several minutes).

Default IP addresses:

Device	IP Address
Steamdeck	192.168.123.150
Router	192.168.123.100
Unitree GO2	192.168.123.18

Once the joystick opens, hold L1 and use the left/right joysticks to move the robot.
Change gaits via the web browser console (opens automatically at 192.168.123.18:9000).
By default, ROS2 drivers are off. Use Restart All to enable services for Steamdeck + ROS2 control.
Additional services can be added via:

/opt/mybotshop/src/mybotshop/go2_webserver/go2_webserver/libroscustom.py

GO2 Camera

Camera Calibration

Note

Calibration is already provided. Requires a 7x6 checkerboard.

Run calibration:

ROS_DOMAIN_ID=10 ros2 run camera_calibration cameracalibrator --size 8x6 --square 0.025 --camera /go2_unit_001/sensor/camera

GO2 Isaac Sim

Note

Instructions for usage are located in the humble branch: qre-go2-humble.

GO2 Gazebo Classic (Under Development)

Launch Gazebo simulation:

ros2 launch go2_gazebo_classic simulation.launch.py

Example — controlling GO2 in Gazebo:

ros2 run go2_platform go2_gazebo_demo

GO2 Gazebo Citadel

Important

Deprecated

GO2 Debugging & Miscellaneous

This section provides instructions for debugging, network setup, camera streaming, manipulator control, and recommended hardware enhancements.

Debugging

RQT GUI

Launch the RQT GUI for ROS2:

ROS_DOMAIN_ID=10 ros2 run rqt_gui rqt_gui --ros-args --remap tf:=/go2_unit_21576/tf --ros-args --remap tf_static:=/go2_unit_21576/tf_static

TF Visualization

View TF tree in RQT:

ROS_DOMAIN_ID=10 ros2 run rqt_tf_tree rqt_tf_tree --force-discover --ros-args --remap tf:=/go2_unit_21576/tf --ros-args --remap tf_static:=/go2_unit_21576/tf_static

Generate TF frames diagram:

ROS_DOMAIN_ID=10 ros2 run tf2_tools view_frames.py --force-discover --ros-args --remap tf:=/go2_unit_21576/tf --ros-args --remap tf_static:=/go2_unit_21576/tf_static

Miscellaneous

Internet via LAN

Connect the GO2 to a router with internet access via LAN:

sudo ip link set eth0 down && sudo ip link set eth0 up
sudo dhclient eth0

Wait 10–30 seconds, then update packages:

sudo apt-get update

Update date and time automatically:

sudo date -s "$(wget --method=HEAD -qSO- --max-redirect=0 google.com 2>&1 | sed -n 's/^ *Date: *//p')"

Fix GO2 USB 2.0 → 3.0 Port (2024 Models)

Backup the current device tree:

sudo cp /boot/dtb/kernel_tegra234-p3767-0000-p3768-0000-a0.dtb kernel_tegra234-p3767-0000-p3768-0000-a0.dtb.bak

Download the latest device tree:

Latest Equipment Tree

Copy the updated device tree to the boot directory:

sudo cp kernel_tegra234-p3767-0000-p3768-0000-a0.dtb /boot/dtb/ -r

Restart the system for changes to take effect.

Sync Host and GO2 Computers

Synchronize source files using rsync:

rsync -avP -t --delete -e ssh src unitree@192.168.123.18://opt/mybotshop

Camera Stream via Terminal (Non-ROS)

View video stream directly from terminal (replace multicast-iface with the network interface, e.g., eth0):

gst-launch-1.0 udpsrc address=230.1.1.1 port=1720 multicast-iface=eth0 ! application/x-rtp, media=video, encoding-name=H264 ! rtph264depay ! h264parse ! avdec_h264 ! videoconvert ! autovideosink

Faster version:

gst-launch-1.0 udpsrc address=230.1.1.1 port=1720 multicast-iface=eth0 ! \
    application/x-rtp, media=video, encoding-name=H264 ! \
    rtph264depay ! queue max-size-buffers=1 ! h264parse ! queue ! avdec_h264 ! \
    videoconvert ! autovideosink

Open Manipulator X (Independent)

Launch Open Manipulator X Controller:

ros2 launch open_manipulator_x_controller open_manipulator_x_controller.launch.py

Teleoperate Open Manipulator X:

ros2 run open_manipulator_x_teleop teleop_keyboard

Enhancements

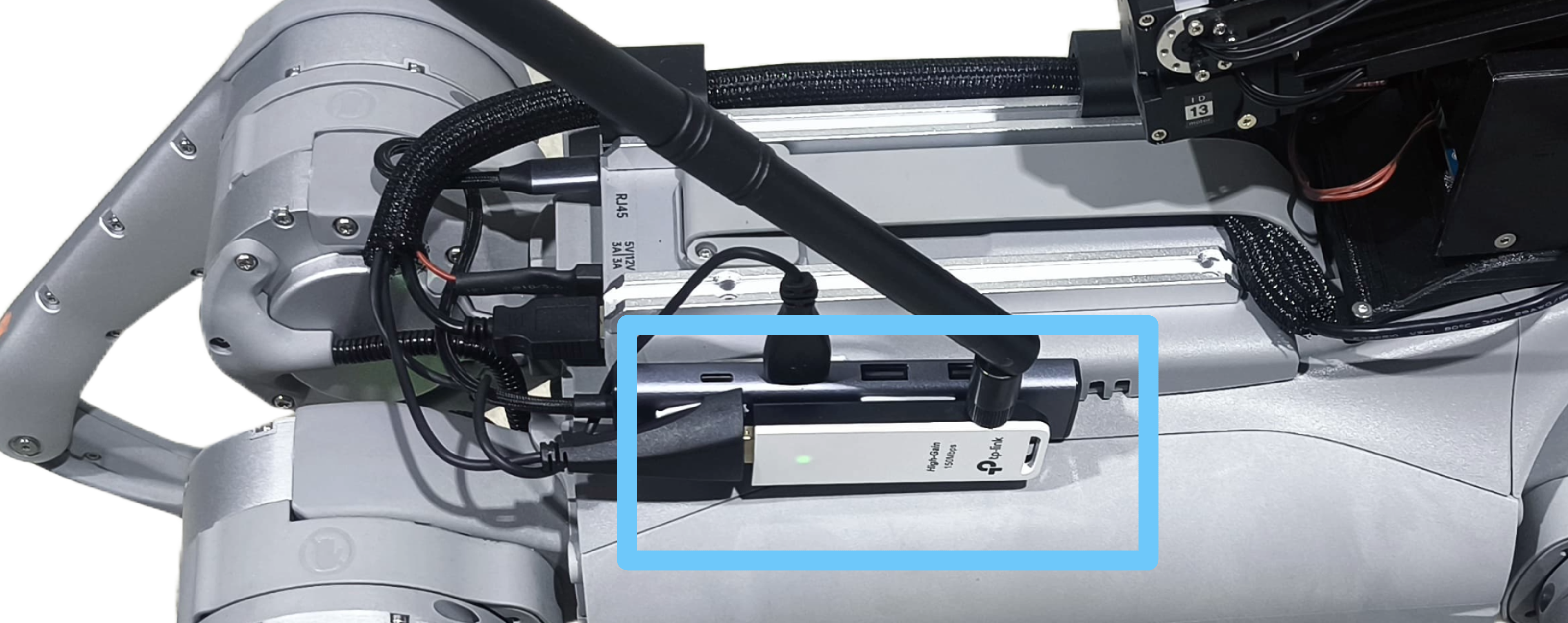

WiFi Stick

We recommend using a long-range WiFi stick, such as TL-WN722N, or any high-end long-range WiFi stick for remote operation.

Connection Hub

For connecting a screen or expanding ports, we recommend a USB-C hub such as Ugreen USB-C Hub with HDMI for testing and debugging.

Latest QRE GO2 Updates

Important

The latest updates are available from the qre_go2 GitHub repository. If access is required, email support@mybotshop.de with your GitHub username and purchase ID.

Open Manipulator X ROS Control

GO2 Nvidia Installation

GO2 Foxy Quick Start

Static Network Connection

GO2 IP Addresses

Network Connection

GO2 Drivers Startup

GO2 Gaits

GO2 Sports Mode

GO2 Visualization

GO2 Tele-operation

Go2 ROS2 Modules

GO2 Webserver

Login

Dashboard

System

Console

Remote Desktop

Navi Indoor

Navi Outdoor

LLM Interface

GO2 Mode Activation

Realsense Depth Cameras

Lidar Modules

Fixposition Setup

ROS2 Open Manipulator Control

ROS2 Open Manipulator Commands

GO2 Navigation & Simulation

GO2 SLAM (Simultaneous Localization and Mapping)

GO2 Odometric Navigation

GO2 Map Navigation

GO2 Startup Services

GO2 Steamdeck

GO2 Camera

GO2 Isaac Sim

GO2 Gazebo Classic (Under Development)

GO2 Gazebo Citadel

GO2 Debugging & Miscellaneous

Debugging

RQT GUI

TF Visualization

Miscellaneous

Internet via LAN

Fix GO2 USB 2.0 → 3.0 Port (2024 Models)

Sync Host and GO2 Computers

Camera Stream via Terminal (Non-ROS)

Open Manipulator X (Independent)

Enhancements

WiFi Stick

Connection Hub

Latest QRE GO2 Updates
